This is how i succeeded using the nRF905 with an esp8266-12E development board.
When using some examples from internet it was not clear to me which pins to connect and how to use the given examples. Then i found RadioHead Packet Radio library for embedded microprocessors. After download and unzip, i placed the files in the Arduino library directory. The examples were then available in the Arduino IDE. With a few modifications to the example code i got it up and running.
The RadioHead file RH_NRF905.h assumes these connections:
Connect the nRF905 to Teensy (or Arduino with suitable level shifters) like this
CPU nRF905 module
3V3----------VCC (3.3V)
pin D8-----------CE (chip enable in)
pin D9-----------TX_EN (transmit enable in)
SS pin D10----------CSN (chip select in)
SCK pin D13----------SCK (SPI clock in)
MOSI pin D11----------MOSI (SPI Data in)
MISO pin D12----------MISO (SPI data out)
GND----------GND (ground in)
The esp8266-12E has two SPI ports, but which one is used by RadioHead? And which pin is the SS line? Well, these are the settings which worked for me:
ESP8266 nRF905 module
3V3----------VCC (3.3V)
pin D1-----------CE (chip enable in)
pin D2-----------TX_EN (transmit enable in)
SS pin D4-----------CSN (chip select in)
HSCK pin D5-----------SCK (SPI clock in)
MOSI pin D7-----------MOSI (SPI Data in)
MISO pin D6-----------MISO (SPI data out)
GND----------GND (ground in)
Because of changes to default pins connected to CE, TX_EN and CSN, i had to adapt
this in the example code. The RadioHead library supports this during instantiation of
the nrf905 object.
// Singleton instance of the radio driver
uint8_t chipEnablePin = D1;
uint8_t txEnablePin = D2;
uint8_t slaveSelectPin = D4;
RH_NRF905 nrf905(chipEnablePin, txEnablePin, slaveSelectPin);

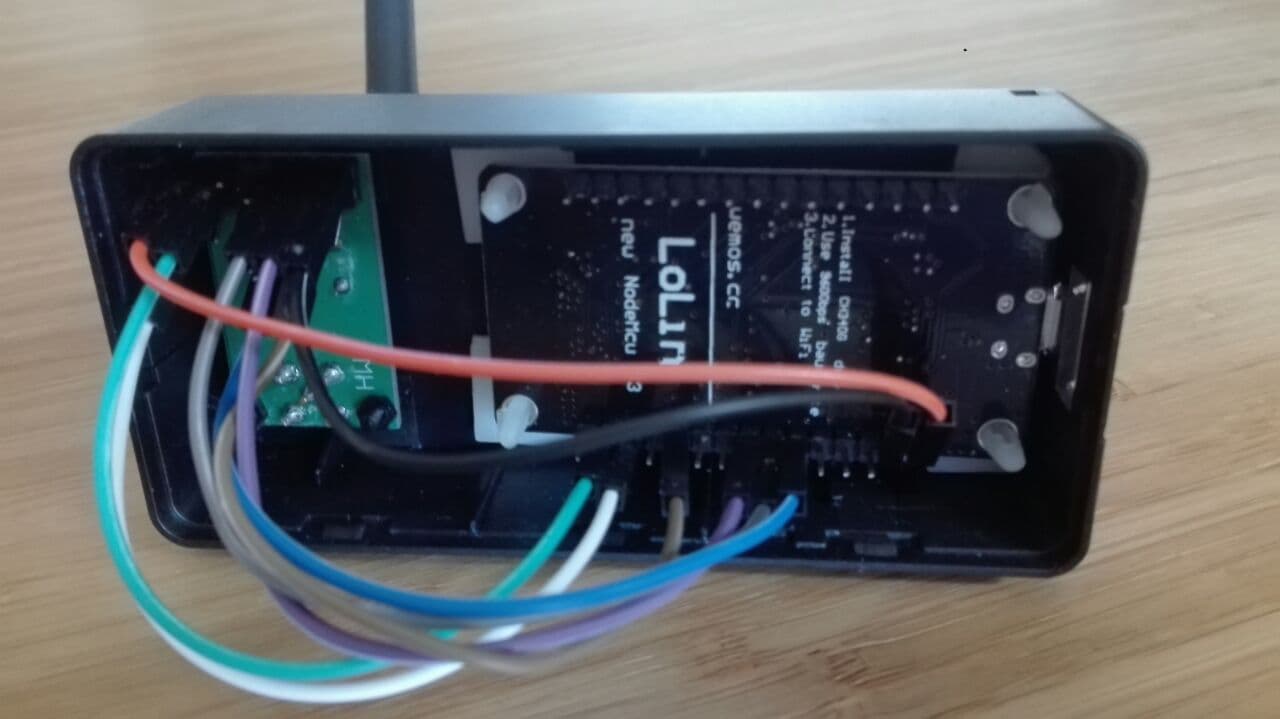

In my setup i used the nrf905_client script on a Lolin esp8266-12E V3 board

and the nrf905_server script on a esp8266-12E V2 board.
